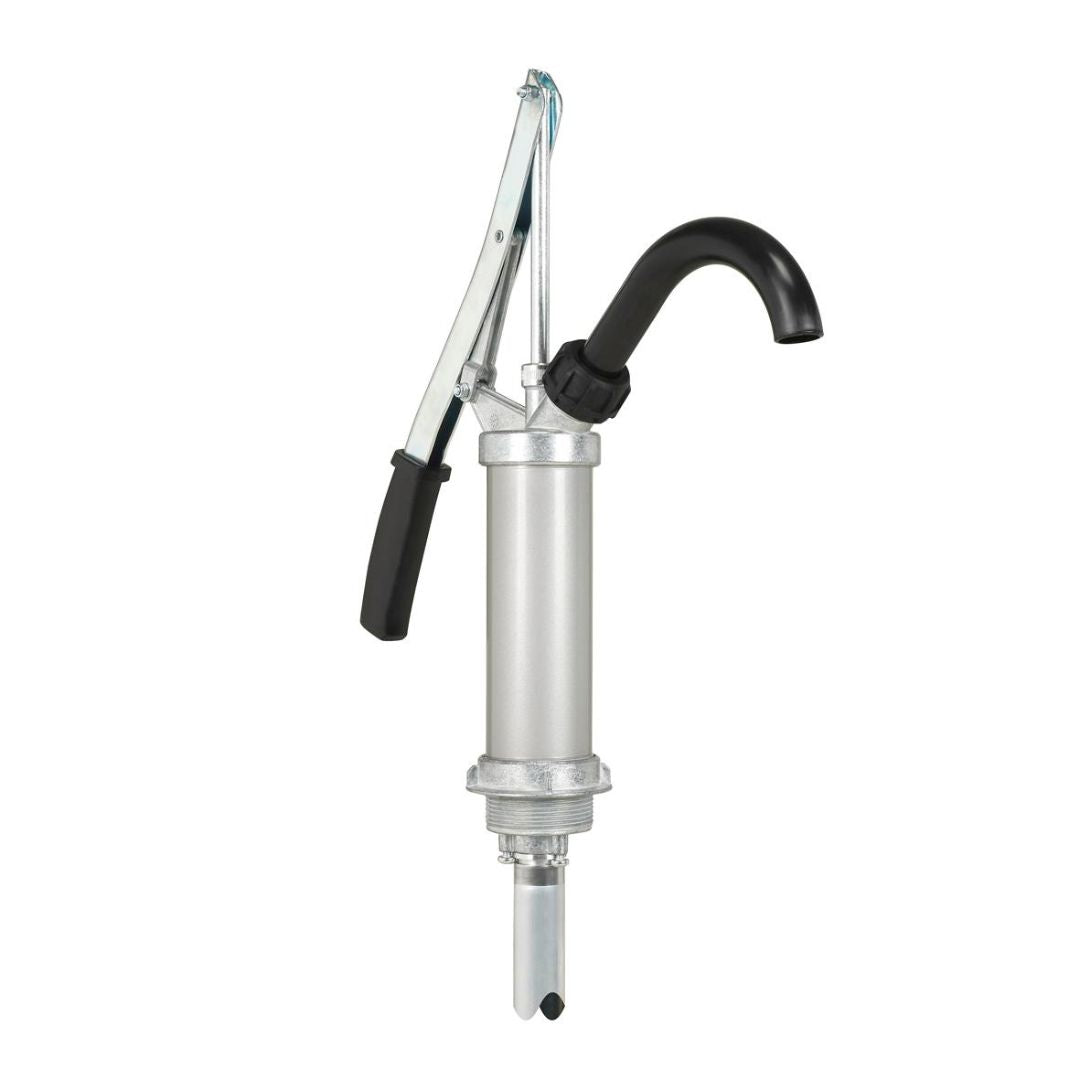

Pressol 13012 Steelpipe-barrel pump, SRL 480-900-16 l/min-STAK

Pressol 13012 Steel Pipe Barrel Pump – Overview

The Pressol 13012 is a robust steel pipe barrel pump designed for transferring a wide range of oils, diesel, heating oil, and antifreeze from 60L, 200L, and 220L drums. With an 18 L/min flow rate, a telescopic suction tube adjustable from 355–955 mm, and a built-in check valve that prevents backflow, it’s a reliable workhorse for any workshop or maintenance environment.

Technical Specifications

• Flow rate per stroke: 0.3 L
• Flow rate at 60 strokes/min: 18 L/min
• Compatible containers: 60L / 200L / 220L drums
• Suction tube length: 355 mm (fixed)
• Immersion depth (2-part): 355–625 mm
• Immersion depth (3-part): 685–955 mm
• Barrel screw connection: G 2'' male
• Outlet: Elbow, fastened with union nut
• Inside diameter: 1.59 mm

Compatible Pumping Media

• Engine oil: SAE 5W to SAE 50
• Gear oil: SAE 75W to SAE 90
• Heating oil, diesel, machine oil, cutting oil, petroleum
• Undiluted antifreeze

Materials

• Pump head: Impact-resistant die-cast zinc
• Pump body: Aluminium
• Intake manifold: HDPE (High-Density Polyethylene)
• Outlet elbow: PP (Polypropylene)
• Seals: PVC, NBR, FKM (Viton®)

Key Features

• Ergonomic non-slip handle for excellent power transmission and handling
• Built-in check valve prevents medium from running back into the container
• Non-return valve can be installed in the intake manifold without tools
• Easy dismantling for simple cleaning
• Telescopic suction tube adjustable from 355 to 955 mm
• Includes EAN barcode

Packaging

• Dimensions (L x W x H): 800 x 90 x 90 mm
• Weight (incl. packaging): 1.77 kg
• Packing unit: 1
