Pressol

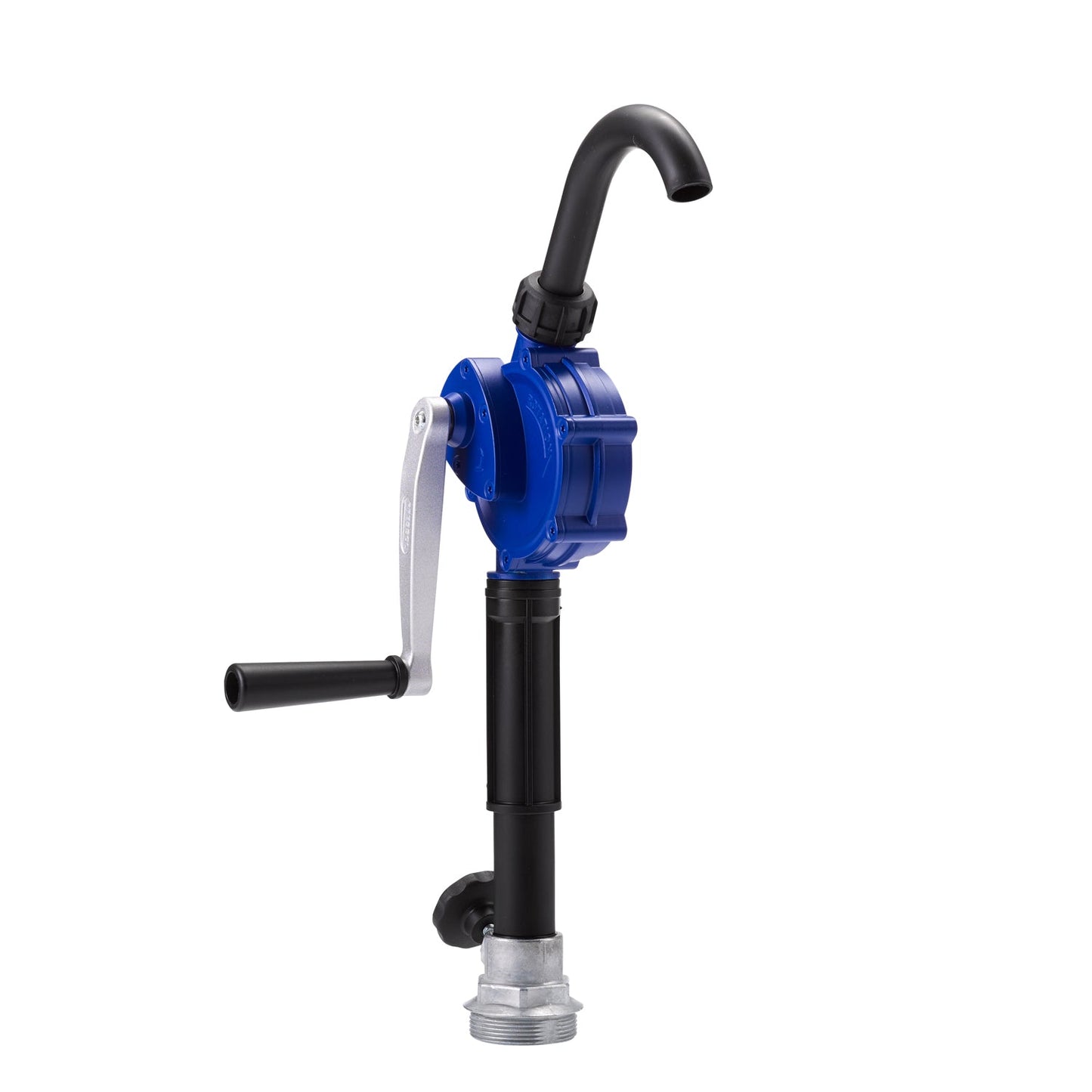

Pressol 13055 Rotary pump with ZBH, SRL 980-18 l/min

Name: Pressol 13055 Rotary pump with ZBH, SRL 980-18 l/min
Brand: Pressol
SKU: 13055
Price: 194.41 AUD
Availability: InStock

$194.41

~~$0.00~~ $194.41

Sale Sold out

Tax included. Shipping calculated at checkout.

Product variants

Quantity

Technical specifications

Flow rate (l/revolution)	0.3
conveying capacity at 60 revolutions/min; Delivery medium diesel ( l/min )	18
conveying media	Self-lubricating and non-aggressive media: Heating oil Diesel Petroleum Coolant (undiluted) Screenwash (undiluted) Machine maintenance: Hydraulic oil Drilling emulsion Gear oil, oils up to SAE 90
Mission	Container for 60/200/220 l
Application	for filling measuring vessels, measuring cups, storage cans, canisters and machines
outlet	outlet elbow
Length of three-piece intake manifold ( mm )	355 - 955
barrel screw connection	G 2'' a
Material pump housing	impact-resistant die-cast zinc ZL 410
color crank	silver
Color gearbox cover and gearbox housing	blue
color housing	blue
Inside diameter ( mm )	2,371

Telescopic suction tube ( 13 094 ) adjustable in length (from 355 to 955 mm )
With a suction filter ( 13 097 003 )
Barrel adapter G 2'' ( 04 464 001 )
outlet elbow ( 81 112 )
Operating manual Here

Smooth hand crank operation
The pump can be steplessly positioned 360°
Variable telescopic tube or suction tube from 355 mm to 955 mm
Assembly, commissioning and container change without tools
CNC manufactured, thus best pump efficiency
Impact-resistant pump housing
Sealed with gaskets
Completely dismountable - easy to clean
Spare parts available for 10 years
Available in 4 color variants
Variants: delivery hose 2 m ( 13 056 ); Delivery hose 2 m and meter ( 13 057 )
3-year guarantee when using the supplied suction strainer (without wearing parts)
